Screen Filter

An irrigation screen filter is a device used in irrigation systems to remove solid particles, such as sand, sediment, debris, and organic matter, from the water before it reaches the irrigation system. The filter helps prevent clogging and damage to irrigation components like sprinklers, emitters, and nozzles.

By incorporating an irrigation screen filter into an irrigation system, farmers and gardeners can help ensure the longevity and efficiency of their irrigation equipment. The filter removes solid particles, allowing clean water to flow through and reducing the risk of clogs and system malfunctions.

Features and Benefits

1. Manufacture Details

Specially blended Glass filled poly propylene material for higher strength and longevity of the filter.

Unique designed vacuum breaker avoids vacuum formation.

2. Features

More filtration area-Effective  filtration,  long  interval  period between cleaning, less pressure drop.

Specially designed supports for the screen to operate at higher pressures.

Radial sealing makes  the  joint  more  leak  proof  at  higher  pressures.

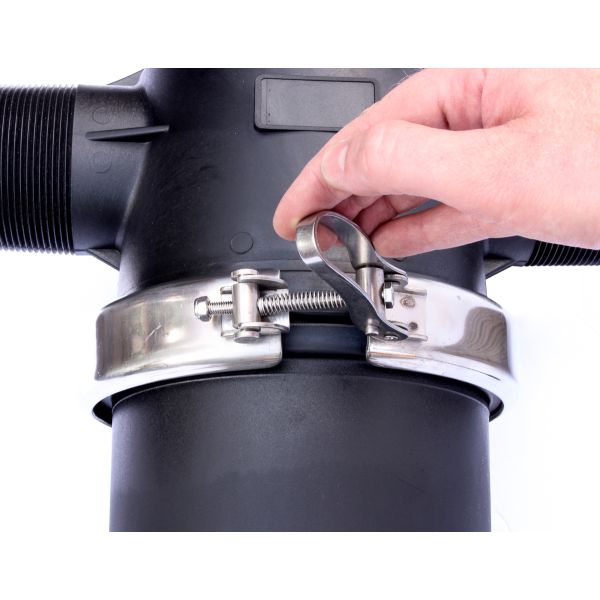

Union nut with specially designed threads makes the top and bottom pieces of the joint more rigid to resist higher pressures.

3. Specifications

Specifications :
Model SF25-50NB SF35-65NB SF45-80NB
Max. Working Pressure 6 kg/cm² 6 kg/cm² 6 kg/cm²
Nominal Flow Rate 25 m³/hr 35 m³/hr 45 m³/hr
Range of Flow Rate 20–30 m³/hr 28–42 m³/hr 40–50 m³/hr
Filtration Surface Area 513 cm² 513 cm² 786 cm²
Inlet/Outlet Connection 2″ BSP 2.5″ BSP 3″ BSP

4. Available Size

Sizes Available: 2″ (20-30 m3/hr), 21/2″ (28-42 m3/hr), 3″ (40-50 m3/hr).

Category:

Description

A screen filter is a type of filter using a rigid or flexible screen to separate sand and other fine particles out of water for irrigate.

Additional information

Available Size

2’’ 25m3, 2.5’’ 35m3, 3’’ 45m3 lts.
